What Are The Part Of Massage Chair

2023-03-28

Main board , motor and rollers, movements and airbags are main parts of massage chairs. But the most importance of component are movements. Because the quality of movement largely determines the quality of massage experience. Today, in the leading massage chair market, the movement of the chairs are divided in 2D and 3D.

So what does “D” mean in the massage chair

Numerous of people do not understand 2D and 3D. Actually D is a movement dimension, in simple term, the movement dimension of the massage chair can be explained in the space dimension.

The 2D movement is equivalent to a 2-dimensional space, which is a face-to-face relationship. In addition to moving up and down, it also supports moving left and right.

The 3D movement is equivalent to a 3-dimensional three-dimensional space, which can move up and down, left and right, and forward and backward.The 3D movement currentyl used in mainstream massage chairs market.

Meiyang is a massage chair brand that producing massage equipment for more than 10 years. We provide customized massage chairs that can be adjusted to meet the needs of different user.

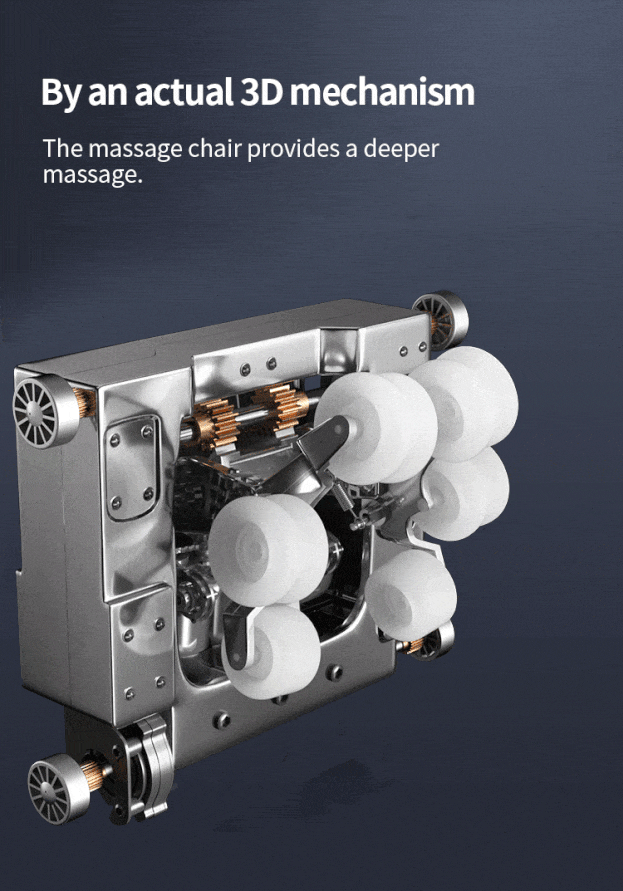

Types of 3D Movement Of Massage Chair

The 3D movement can also be extended into 3D elastic movement, 3D airbag movement, 3D gear movement and other types. Even if the structure is different, the intensity and experience of massage will also be a little different.

In addition to the type of movement, the material of the movement cannot be ignored. At present, the massage chairs on the market can be roughly divided into three types of movement materials: plastic movement, partial stainless steel + plastic movement, and all fine steel machine core.

As the name suggests, the all-stainless steel movement, the whole movement including the manipulator is made of fine steel. The movement made of fine steel is more accurate in massage and has a longer spanlife. Most of them can last for 8-10 years;

Part of the stainless steel + plastic movement will compromise the accuracy and service life of the massage, and minor problems will appear after 2-3 years of use; most of the all-plastic movements are some low-end machines.

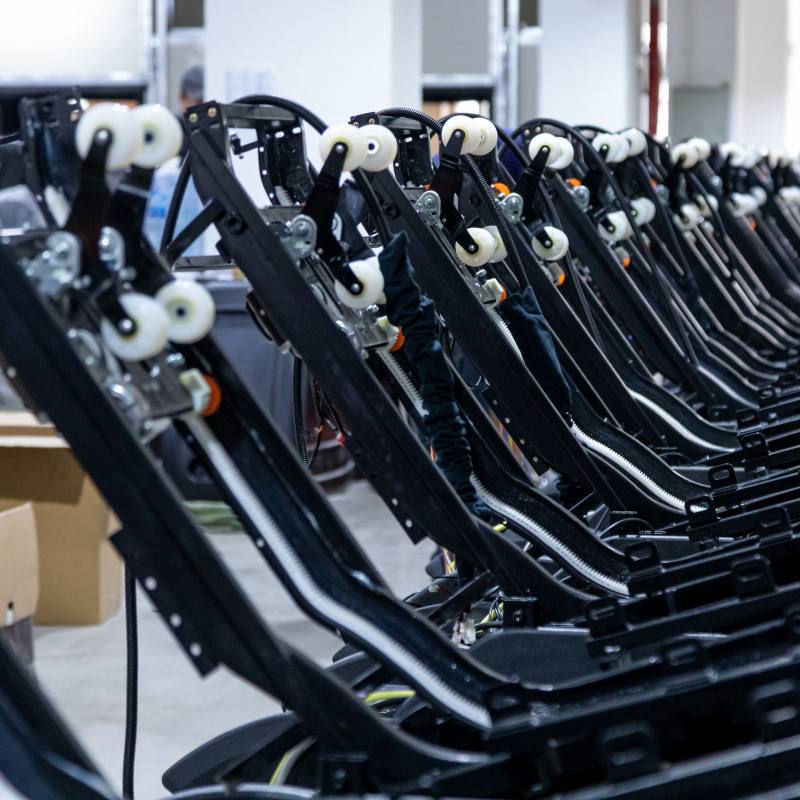

The Fram of Massage Chair

The skeleton is an important part used to support the massage chair, and it also plays a very important role in the safety of the massage chair. Those light massage chairs use wood or plastic as the skeleton.

Good massage chairs are all welded by square steel pipes. The steel pipes are divided into load-bearing rods and connecting and fixing rods. After welding, the steel pipes need to be treated with anti-oxidation, painted after rust removal, and baked at 140-160°C after painting The thickness of the baking paint is generally 0.1-0.2mm, and the thickness of the edge is between 0.1-0.5mm

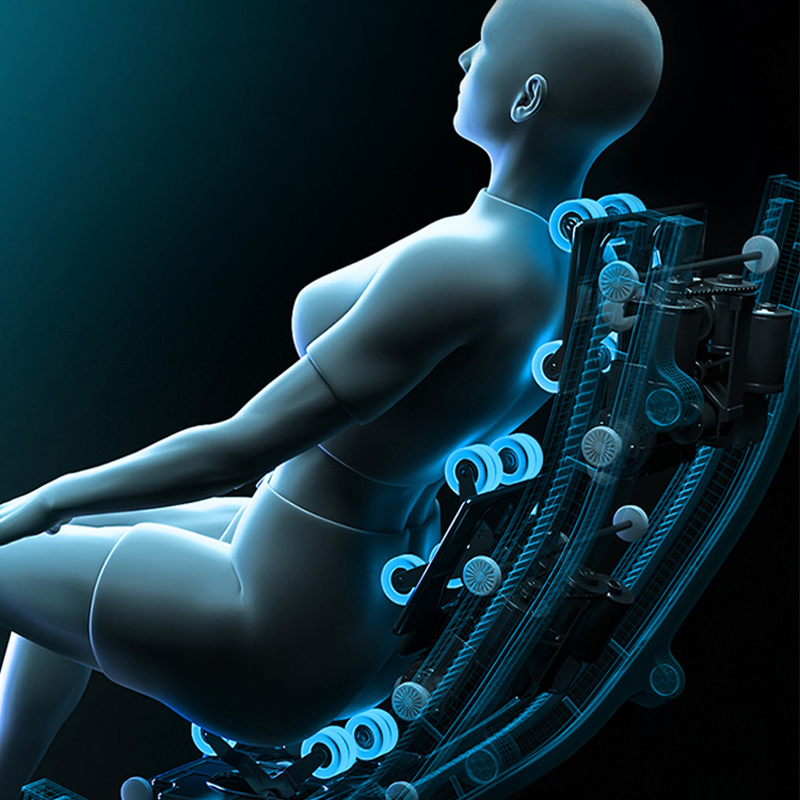

The Type Of Massage Chair Track

The track determines the massage range of the massage chair. There are three types of tracks: L straight track, S guide track and SL track; under the premise of the same material, the comfort of the track is ranked from high to low: SL type > L type > S type.

The length, angle, fit and stability of the track determine the massage experience, which has a lot to do with the design of the track gears.

At present, most of the rail racks of massage chairs on the market are made of ABS plastic materials, which can not only meet the interlocking and staggering of the movement gears, but also walk according to the curvature of the human body curve.

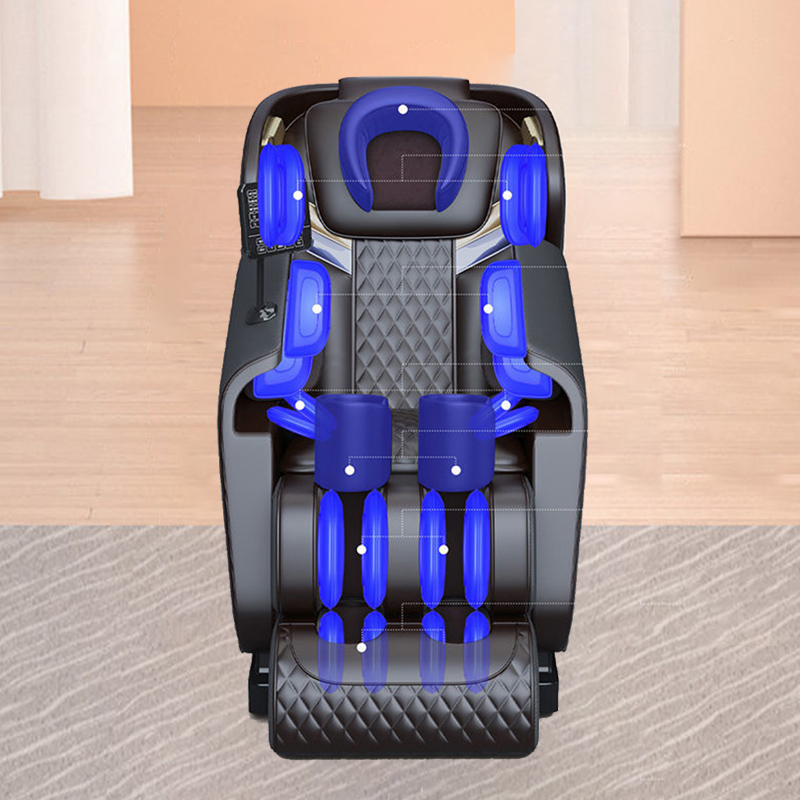

Airbags in the 3D Massage Chair

In addition to the massage chair, the airbag is actually an independent massage system. The appearance of the airbag is a milestone in the development of massage chairs.

Because the airbag can make up for the parts that cannot be massaged by the manipulator, and the manipulator runs on our back, obvisously it can not to take care of both sides of the body. At this time, the airbag plays a very important role, and can massage to the position that these manipulators cannot reach.

Therefore, the airbag system is also a very important part of the massage chair, mainly including airbags, air valves, air pumps, inflation tubes and other components. The airbag is mainly made of TPU environmental protection cloth, which is the same material as the car's airbag. It cooperates with the air pump, air valve, inflation tube, etc. to complete the inflation and deflation process. Mainly for the shoulders, waist, sitting, arms, calves and legs and other parts.

Most of our costumers mainly look at three things in airbags: the number of airbags, the coverage position, and the area of the airbags.

The number of airbags and the coverage positions can be discussed together, because the more comprehensive the airbags cover, the more the number will naturally be. The best distribution of airbags is to cover 6 major parts: shoulders, arms, airbags, waist, buttocks, calves and feet.

The size of the airbag is related to the wrapping performance of the airbag. The airbag with a large area has better wrapping performance and more comprehensive massage. Generally, the area of the airbag will be more than 25*25. When choosing, you can choose to increase the height of the airbag
